Tube Fiber Laser Cutting Machines

High-precision machines for cutting metal tubes using fiber laser technology.

Get A Quote

Tube Fiber Laser Cutting Machines

The pipe laser cutting machine can process various pipe types like square tubes, round tubes, I-beams, and more. LDLASER machines offer high precision, efficiency, and versatility for cutting different shapes. They also help reduce manual work and equipment costs by combining multiple processes in one.

Machine model

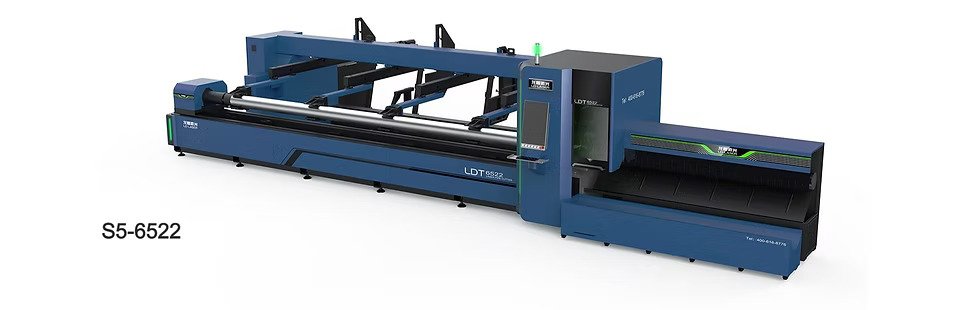

S3-6522 S5-6522

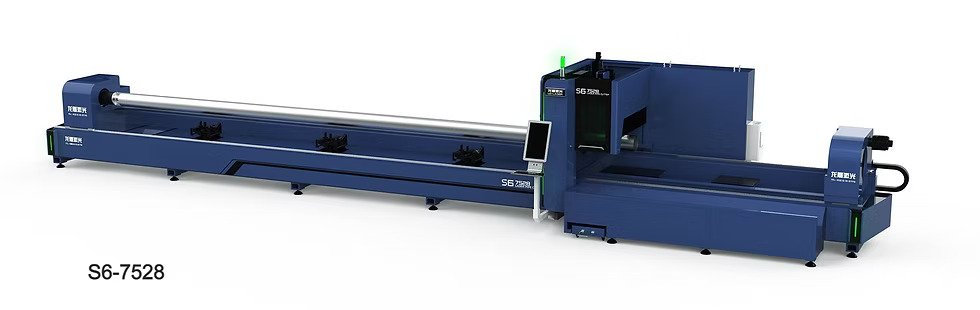

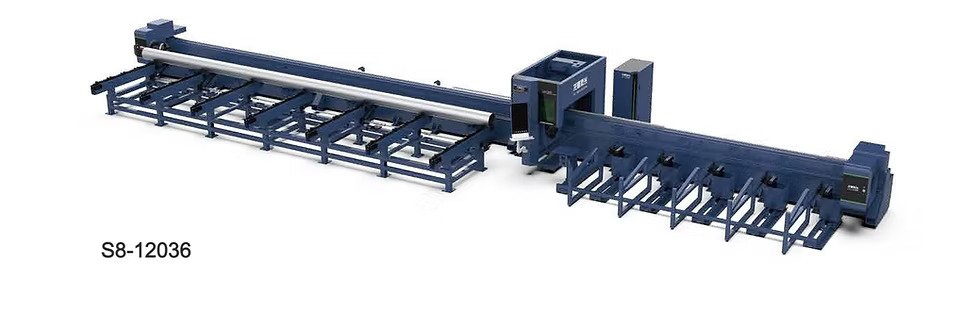

S6-7528 S8-12036

Working area

S3-6522: 6000mm*φ15-230mm

S5-6522: 6000mm*φ15-230mm

S3-7528: 7000mm*φ15-280mm

S3-12036: 12000mm*φ20-360mm

Laser power

S3-6522: 1000w-6000w

S5-6522: 1000w-6000w

S3-7528: 3000w-12000w

S3-12036: 3000w-12000w

Chuck speed

S3-6522: 120rpm

S5-6522: 120rpm

S3-7528: 75rpm

S3-12036: 60rpm

X/Y axis positioning accuracy

+0.05mm/m

​Max.running speed

60m/min

Min.Tailstock

S3-6522: 70mm

S5-6522: 70mm

S3-7528: ≥0

S3-12036: ≥0
